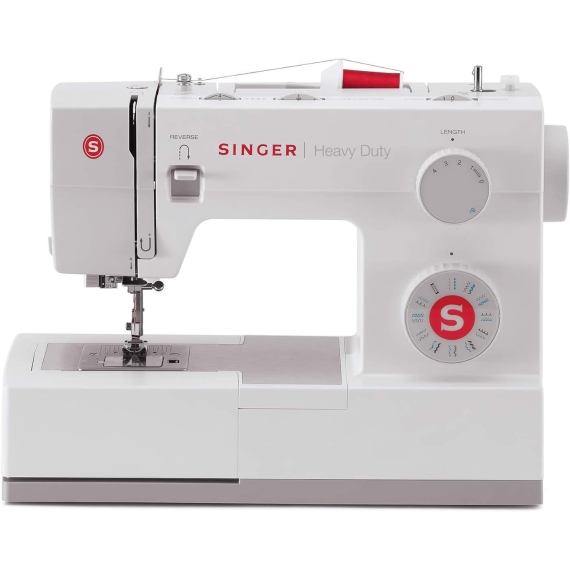

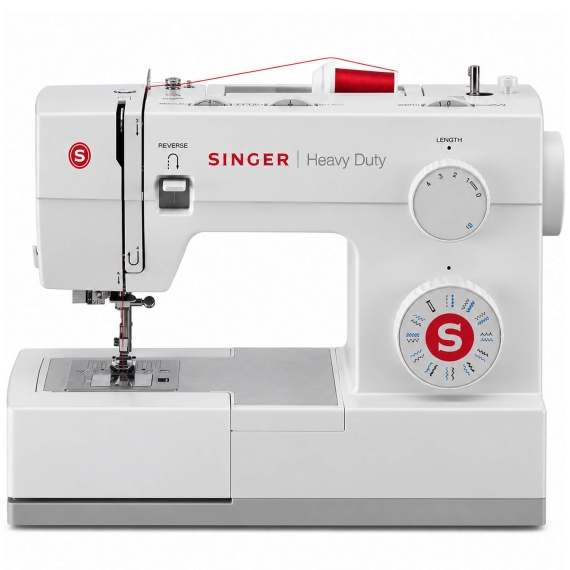

Singer Heavy Duty 5523 Sewing Machine

100% of 100
7  Reviews Average rating 5.0 out of 5 Stars.
The perfect work horse for the domestic market without the size of an industrial. Compact and powerful with a good array of stitches including the all important stretch stitches and featured found on a household machine, suitable for anything from denim to satin, or leather to jersey, this Singer 5523 will be a valuable tool for any project.
 Price £319.00  Today £279.00
In stock

Free £50 Bundle + 10 Year Warranty & FREE UK Delivery

FREE delivery by DPD, order
Delivery: 1 Working Day(s) (Sat, Sun options)

The Singer Heavy Duty 5523 Sewing Machine compliments the already prolific Singer Heavy Duty sewing machine range. it's fresh white design brings something different to the range without compromise. The Singer 5523 have a very strong cast aluminium body to support its superior sewing power and very strong motor. Faster than a standard sewing machine and without many of the bells and whistles, this machine is a utility machine and it is here to do the job, where power, speed and precision is required.

The Singer Heavy Duty sewing machines have been around for years now and have a fantastic reputation for reliability, they are by far the most popular machine sold in the UK outselling its closes rival by almost double. The Singer 5523 Heavy Duty although it is touted as a utility machine it still has a huge array of stitches and features not found on a straight stitch industrial machine. The 5523 boast 23 stitches including Zig-Zag, Blind hem, Stretch stitches and one-step automatic buttonholes as well as a built in light and auto needle threader. The Singer 5523 is perfect for a busy environment to learn with and develop as a machinist.

Top loading jam proof bobbin, easy changable domestic sewing machine needle clamp and simple lay in threading system. This machine has all the benefits of a Heavy Duty machine but with the ease of a standard domestic machine, it is so simple to use.

Built-In Stretch Stitches
Specially designed stitches that add strength and flexibility to seams, especially useful when sewing on knitwear and superstretch fabrics.

Adjustable Stitch Length and Width
Each stitch function can be adjusted to personalize length or width.

One-Step Automatic Buttonholes
Buttonhole sewing is a one step simple process, providing reliable results.

3 Needle Positions
Needle position can be changed for individual projects, left, centre or right such as inserting zippers or cording and topstitching.

Top Drop-in Bobbin
As well as the loading bobbin the hook unit which carries the thread is rotary system making for bets stitching results at faster speeds.

Automatic Needle Threader
After effortlessly threading the machine this feature automatically threads the eye of the needle!

Automatic Bobbin Winding Clutch
Needle bar automatically disengages when winding the bobbin, making bobbin winding safer.

6-Segment Feeding System
This is a specially designed feed dog that ensures that the fabric is picked up and supported from the front of the presser foot to the rear. This makes for much more accurate feeding.

Box Feed
This is a feed dog motion that moves the feed dogs in a box motion, rather than the historic arc motion. Box motion assures perfect feeding throughout the entire feed process, as the 6-point feed dogs are always in perfect and equal contact with the fabric and presser foot.

Aluminium Frame
The internal skeleton of the Singer Heavy Duty is metal. This rigid support holds all the mechanisms in perfect alignment for perfect, skip-free sewing.

Electronic Foot Speed Controller
A control system that senses when additional power is required to maintain speed through thick or changing fabric conditions. This feature is most useful when sewing through multiple (6-8) layers of fabric. Guarantees consistent sewing speed with no jump starts from super slow to super fast stitching.

On Board Storage
Storage area means accessories are always easily accessible.


  • 23 Stitch Patterns
  • 1,100 Stitches per Minute
  • Fully Automatic 1-Step Buttonhole
  • Built-In Automatic Needle Threader
  • Top Drop-in Bobbin
  • Strong Rotary Hook Unit
  • Stainless Steel Bed Plate
  • Adjustable Presser Foot Pressure
  • Adjustable Stitch Length & Width
  • Drop Feed for free motion embroidery
  • Heavy Duty Metal Internal Frame for strength and reliability
  • High Presser Foot Lift

Included Accessories: General  All Purpose Foot, Zipper Foot, Buttonhole Foot, Button Sewing Foot, Seam Ripper/Brush, Quilting/Edge Guide, Needles, Spool Holders, Bobbins, Screwdriver, Spool Pin, Spool Felt, Soft Cover, Foot Pedal, Power Cord, Instruction Manual


UPC 00374318831794
Manufacturer Singer
Model Number Heavy Duty 5523
Type Sewing Machine
Promotion Free £50 Bundle + 10 Year Warranty & FREE UK Delivery
Warranty Extended Warranty 10 Years Parts and Labour
Weight Kg 8.5
Size (Height, Width, Depth) W41 cm x H29 cm
Variable Electronic Speed Control Yes
Bobbin Access Top Loading
Transparent bobbin cover Bobbin Cover Yes
Hard Carrying or Storage Cover No
Automatically Tensions Thread No
Integrated Needle Threader Yes
Thread End Cutting Manual
Number of Stitch Selections 23
Popular Stitch Functions Straight, Zig-Zag, Multi Zigzag, Blind Hem, Stretch Blind Hem, Straight Stretch, Overlock Stretch, Scallop, Ric Rac, Honeycomb, Herringbone, Gathering, Applique, Sew-On Buttons, Quilting Stitches, Closed Overedge
Formation of Buttonholes 1-Step Fully Automatic
Variety of Buttonholes 1
Twin Needle Optional
Maximum Speed Limit Adjustment No
Needle Up/Down Function No
Integrated Dual Feed System No
Integrated Fabric Feed Lowering Yes
Hook Movement Smooth Rotary Action
Needle Positions Left / Right / Centre
Tutorial CD / DVD No
Voltage 220-240 Volts
